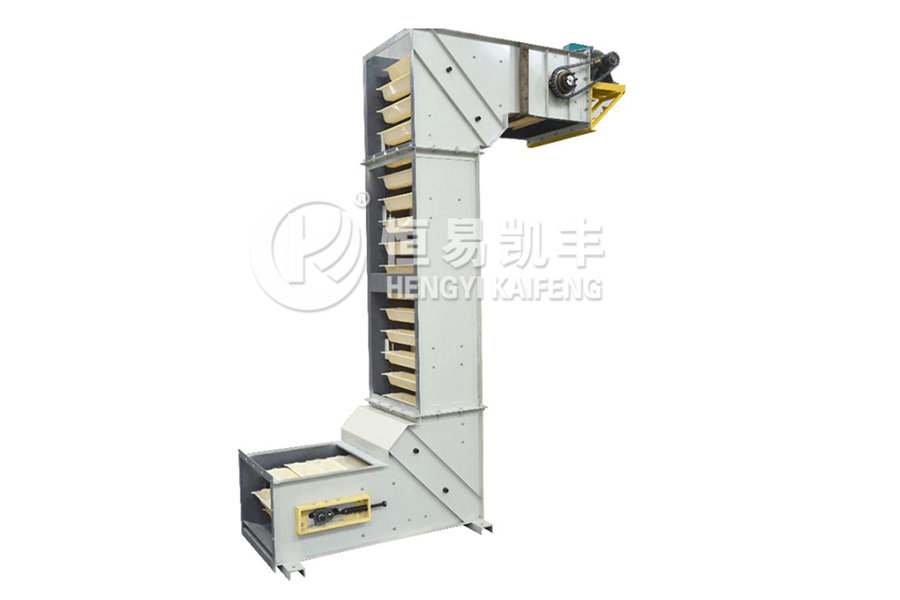

Z-type hoist
It is named after the letter Z according to the different positions of the inlet and outlet; It can meet the requirements of multi-point unloading at any position, and will not damage the material structure in the transportation, and the feeding is uniform and convenient. At present, it is mainly used in activated carbon, chemical industry, plastics, grain, food, hardware and other industries
| 參數 parameter 型號 Model | ZD-3L | ZD-6L | ZD-8L | ZD-10L | ZD-15L | ZD-20L | ZD-25L | ||
| 輸送量 Transportation volume | 100% | m3/h | 6 | 15 | 18 | 22 | 30 | 45 | 56 |
| 75% | 4.5 | 11 | 14 | 16.5 | 22.5 | 33.5 | 42 | ||
| 料斗（mm） Hopper | 斗容 | L | 3 | 6 | 6 | 8 | 15 | 20 | 25 |
| 斗寬 | mm | 370 | 470 | 670 | 870 | 500 | 560 | 690 | |
| 斗距 | mm | 228.6 | 330 | ||||||
| 鏈條 chain | 條數 | - | 2 | ||||||
| 提升高度 Max.lifting height | m | ≤45 | |||||||
| 水平輸送距離 Maximum horizontal conveying distance | m | ≤100 | |||||||
| 總功率 Total power | Kw | 0.72-22 | |||||||
